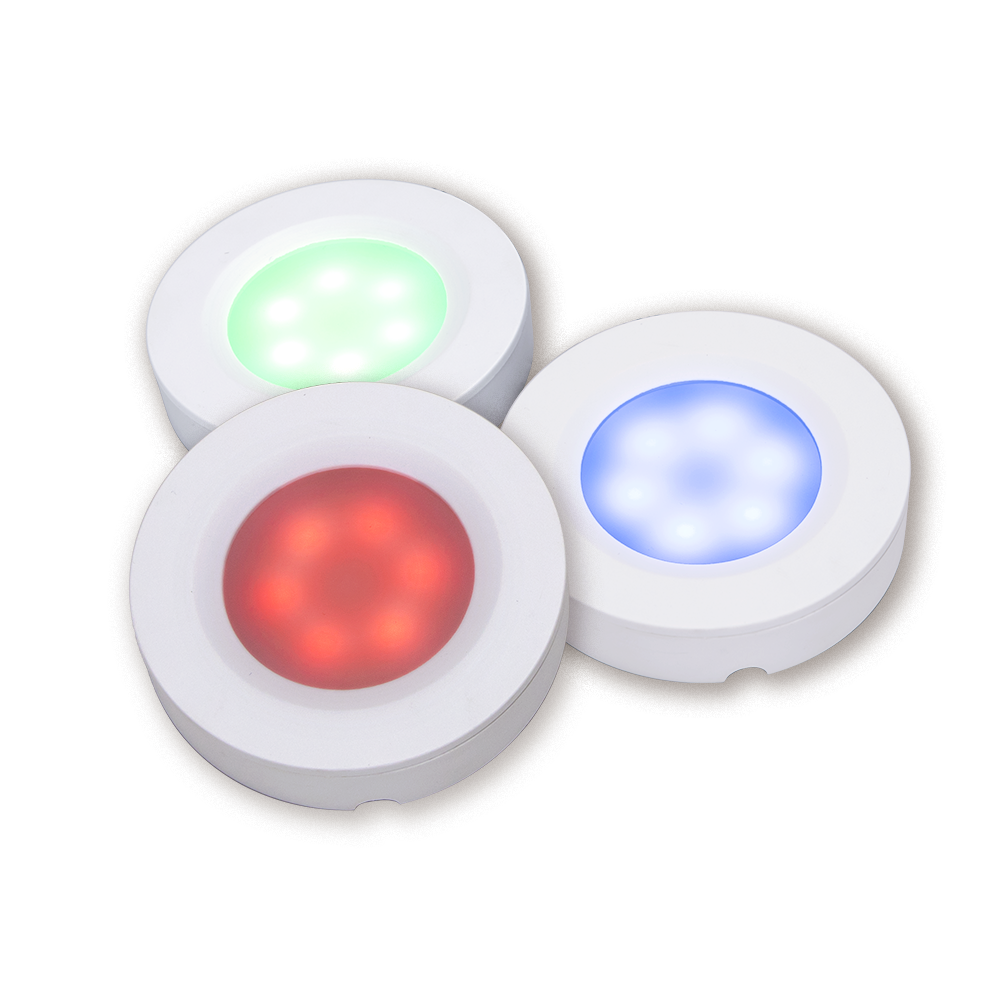

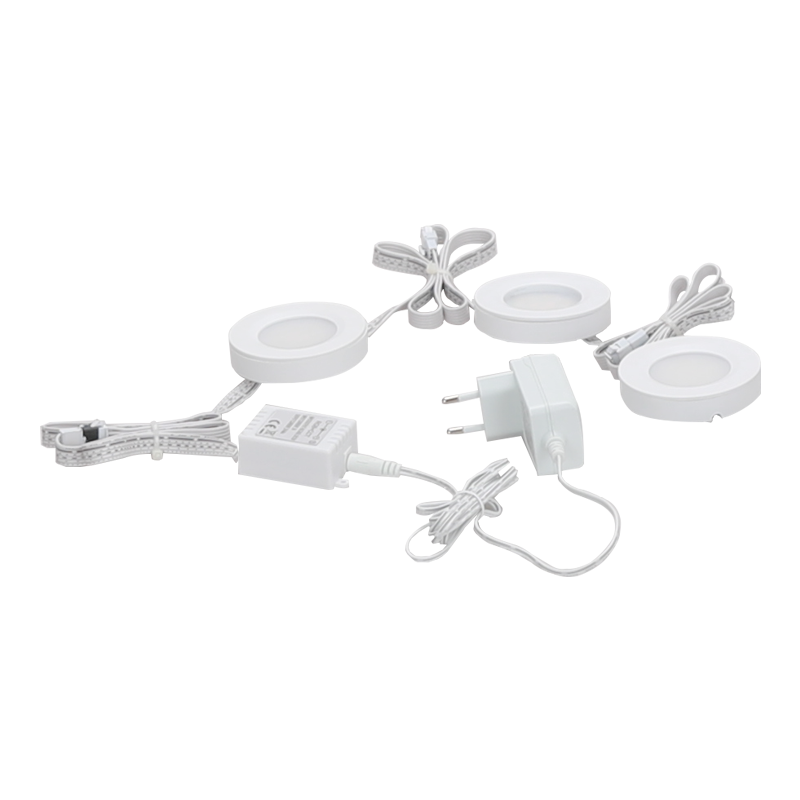

LED Round Cabinet Light

MK-CB70T15T-CD003-01
Feature

Design for cabinet lighting and indoor use

Dimming: RGB + CCT + Tuya Wi-Fi control

Wattage: 2.5Watt

Dimensions: Ø70mm × 15mmH


Color
Description

Construction: Plastic housing + PS diffuser

Mounting: Surface mount, Recess mount


Parameters

Luminous flux: 155Lm

Luminous flux efficacy: 63lm/W

Color temperature: CCT (2700K+6500K)

Color rendering index: >80

Beam angle: 85°

LED lamp: 2835; (18+18) pcs

Life time: 30000Hours

Input voltage: AC100-240V

Power factor: ≥0.5


Properties

Luminaire material: ABS

Electrical safety: Class III

IP rating: IP20

Operation temperature: -20°C ~ +45°C



MK-CB70T15T-CD002-01
Feature

Design for cabinet lighting and indoor use

Dimming: RGB + CCT + Tuya Wi-Fi control

Wattage: 1.5Watt in white light

Dimensions: Ø70mm × 15mmH


Color
Description

Construction: Plastic housing + PS diffuser

Mounting: Surface mount, Recess mount


Parameters

Luminous flux: 65Lm

Luminous flux efficacy: 45lm/W

Color temperature: RGB+CCT (2700K+6500K)

Color rendering index: >80

Beam angle: 85°

LED lamp: 5050+2835; (6+6+6)pcs

Life time: 30000Hours

Input voltage: AC100-240V

Power factor: ≥0.5


Properties

Luminaire material: ABS

Electrical safety: Class III

IP rating: IP20

Operation temperature: -20°C ~ +45°C



MK-CB70T15T-CD001-01
Feature

Design for cabinet lighting and indoor use

Dimming: RGB + CCT + Tuya Wi-Fi voice control

Wattage: 5Watt

Dimensions: Ø70mm × 15mmH


Color
Description

Construction: Plastic housing + PS diffuser

Mounting: Surface mount, Recess mount


Parameters

Luminous flux: 240Lm

Luminous flux efficacy: 50lm/W

Color temperature: RGB+CCT (2700K+6500K)

Color rendering index: >80

Beam angle: 85°

LED lamp: 5050+2835; 3×(6+9+9)pcs

Life time: 30000Hours

Input voltage: AC100-240V

Power factor: ≥0.5


Properties

Luminaire material: ABS

Electrical safety: Class III

IP rating: IP20

Operation temperature: -20°C ~ +45°C
